P. 161

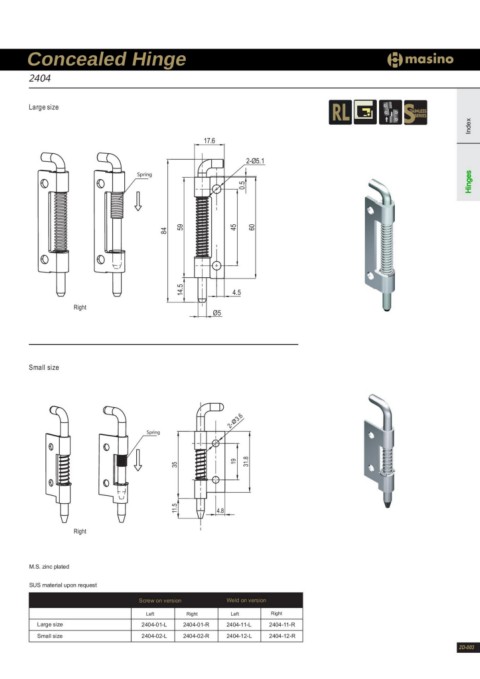

Concealed Hinge Index
2404 2-Ø5.1
Large size Hinges
17.6
Spring
84
59
45
0.5
60
14.5 4.5
Ø5
Right
Small size
Spring 2- 3.6
11.5 35
19
31.8
4.8
Right Screw on version Weld on version
M.S. zinc plated Left Right Left Right
SUS material upon request 2404-01-L 2404-01-R 2404-11-L 2404-11-R
2404-02-L 2404-02-R 2404-12-L 2404-12-R
Large size
Small size
2D-003
