P. 159

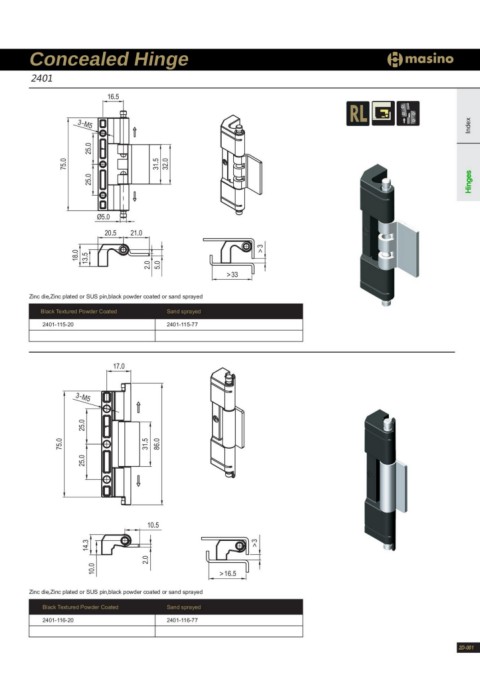

Concealed Hinge Index
2401
16.5
3-M5
75.0 Hinges
25.0 25.0
31.5
32.0
Ø5.0 21.0
20.5
18.0 >3
13.5
2.0
5.0
>33
Zinc die,Zinc plated or SUS pin,black powder coated or sand sprayed
Black Textured Powder Coated Sand sprayed
2401-115-20 2401-115-77
17.0
3-M5
75.0
25.0 25.0
31.5
86.0
10.5
10.0 14.3 >3
2.0
>16.5
Zinc die,Zinc plated or SUS pin,black powder coated or sand sprayed
Black Textured Powder Coated Sand sprayed
2401-116-20 2401-116-77
2D-001
