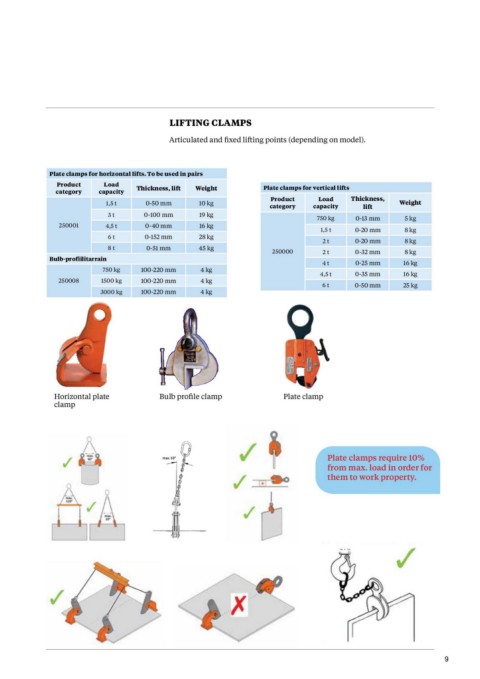

LIFTING CLAMPS

Articulated and fixed lifting points (depending on model).

Plate clamps for horizontal lifts. To be used in pairs

Product Load Thickness, lift Weight Plate clamps for vertical lifts
category capacity

1,5 t 0-50 mm 10 kg Product Load Thickness, Weight
category capacity lift
5 kg
3t 0-100 mm 19 kg 750 kg 0-13 mm 8 kg
8 kg
250001 4,5 t 0-40 mm 16 kg 1,5 t 0-20 mm 8 kg
16 kg
6t 0-152 mm 28 kg 2 t 0-20 mm 16 kg
25 kg
8t 0-51 mm 45 kg 250000 2 t 0-32 mm

Bulb-profiilitarrain 4 t 0-25 mm

750 kg 100-220 mm 4 kg 4,5 t 0-35 mm

250008 1500 kg 100-220 mm 4 kg 6 t 0-50 mm

3000 kg 100-220 mm 4 kg

Horizontal plate Bulb profile clamp Plate clamp
clamp
Plate clamps require 10%
from max. load in order for
them to work property.

9
