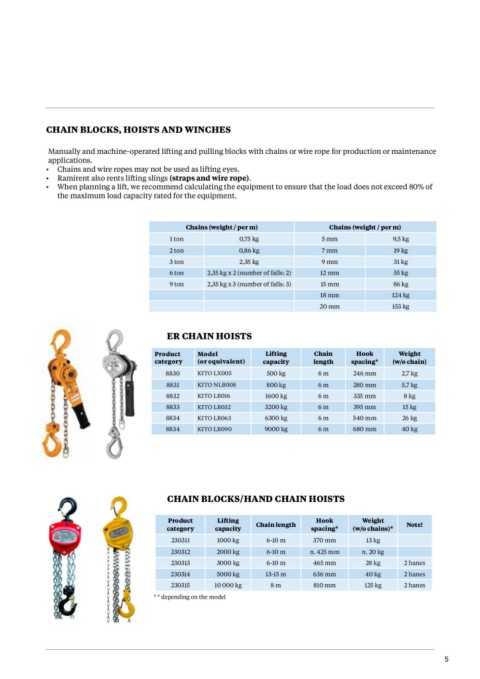

CHAIN BLOCKS, HOISTS AND WINCHES
Manually and machine-operated lifting and pulling blocks with chains or wire rope for production or maintenance
applications.
• Chains and wire ropes may not be used as lifting eyes.
• Ramirent also rents lifting slings (straps and wire rope).
• When planning a lift, we recommend calculating the equipment to ensure that the load does not exceed 80% of
the maximum load capacity rated for the equipment.
Chains (weight / per m) Chains (weight / per m)
1 ton 0,75 kg 5 mm 9,5 kg
2 ton 0,86 kg 7 mm 19 kg
3 ton 2,35 kg 9 mm 31 kg
6 ton 2,35 kg x 2 (number of falls: 2) 12 mm 55 kg
9 ton 2,35 kg x 3 (number of falls: 3) 15 mm 86 kg
18 mm 124 kg
20 mm 153 kg
ER CHAIN HOISTS
Product Model Lifting Chain Hook Weight
category (or equivalent) capacity length spacing* (w/o chain)
246 mm
8830 KITO LX005 500 kg 6m 280 mm 2,7 kg
8831 KITO NLB008 800 kg 6m 335 mm 5,7 kg
8832 KITO LB016 1600 kg 6m 395 mm 8 kg
8833 KITO LB032 3200 kg 6m 540 mm 15 kg
8834 KITO LB063 6300 kg 6m 680 mm 26 kg
8834 KITO LB090 9000 kg 6m 40 kg
CHAIN BLOCKS/HAND CHAIN HOISTS
Product Lifting Chain length Hook Weight Note!
category capacity spacing* (w/o chains)*
6-10 m 370 mm 2 hanes
230311 1000 kg 6-10 m n. 425 mm 13 kg 2 hanes
6-10 m 465 mm n. 20 kg 2 hanes
230312 2000 kg 13-15 m 636 mm
810 mm 28 kg
230313 3000 kg 8m 40 kg
125 kg
230314 5000 kg
230315 10 000 kg
* * depending on the model
