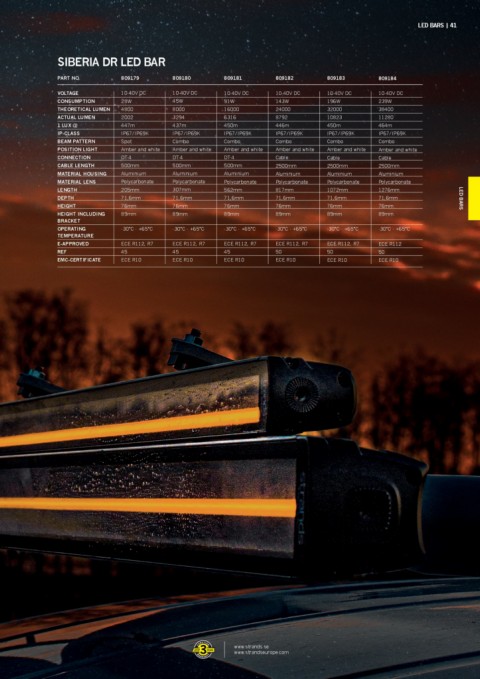

LED BARS | 41

SIBERIA DR LED BAR

PART NO. 809179 809180 809181 809182 809183 809184

VOLTAGE 10-40V DC 10-40V DC 10-40V DC 10-40V DC 10-40V DC 10-40V DC LED BARS
CONSUMPTION 28W 45W 91W 143W 196W 239W
THEORETICAL LUMEN 4800 8000 16000 24000 32000 38400
ACTUAL LUMEN 2002 3294 6316 8792 10823 11280
1 LUX @ 447m 437m 450m 446m 450m 464m
IP-CLASS IP67/IP69K IP67/IP69K IP67/IP69K IP67/IP69K IP67/IP69K IP67/IP69K
BEAM PATTERN Spot Combo Combo Combo Combo Combo
POSITION LIGHT Amber and white Amber and white Amber and white Amber and white Amber and white Amber and white
CONNECTION DT-4 DT-4 DT-4 Cable Cable Cable
CABLE LENGTH 500mm 500mm 500mm 2500mm 2500mm 2500mm
MATERIAL HOUSING Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium
MATERIAL LENS Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate
LENGTH 205mm 307mm 562mm 817mm 1072mm 1276mm
DEPTH 71,6mm 71,6mm 71,6mm 71,6mm 71,6mm 71,6mm
HEIGHT 76mm 76mm 76mm 76mm 76mm 76mm
HEIGHT INCLUDING 89mm 89mm 89mm 89mm 89mm 89mm
BRACKET
OPERATING -30°C - +65°C -30°C - +65°C -30°C - +65°C -30°C - +65°C -30°C - +65°C -30°C - +65°C
TEMPERATURE
E-APPROVED ECE R112, R7 ECE R112, R7 ECE R112, R7 ECE R112, R7 ECE R112, R7 ECE R112
REF 45 45 45 50 50 50
EMC-CERTIFICATE ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10
