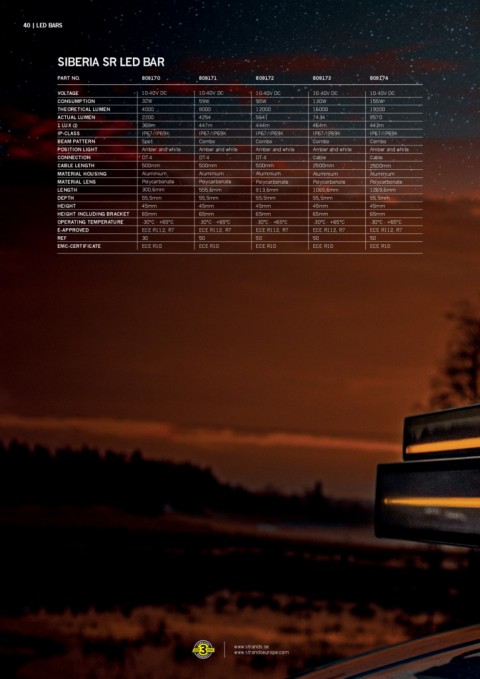

40 | LED BARS

SIBERIA SR LED BAR

PART NO. 809170 809171 809172 809173 809174

VOLTAGE 10-40V DC 10-40V DC 10-40V DC 10-40V DC 10-40V DC
CONSUMPTION 32W 59W 95W 130W 155W
THEORETICAL LUMEN 4000 8000 12000 16000 19200
ACTUAL LUMEN 2200 4254 5641 7434 8570
1 LUX @ 368m 447m 444m 464m 443m
IP-CLASS IP67/IP69K IP67/IP69K IP67/IP69K IP67/IP69K IP67/IP69K
BEAM PATTERN Spot Combo Combo Combo Combo
POSITION LIGHT Amber and white Amber and white Amber and white Amber and white Amber and white
CONNECTION DT-4 DT-4 DT-4 Cable Cable
CABLE LENGTH 500mm 500mm 500mm 2500mm 2500mm
MATERIAL HOUSING Aluminium Aluminium Aluminium Aluminium Aluminium
MATERIAL LENS Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate
LENGTH 300,6mm 555,6mm 813,6mm 1065,6mm 1269,6mm
DEPTH 55,5mm 55,5mm 55,5mm 55,5mm 55,5mm
HEIGHT 45mm 45mm 45mm 45mm 45mm
HEIGHT INCLUDING BRACKET 65mm 65mm 65mm 65mm 65mm
OPERATING TEMPERATURE -30°C - +65°C -30°C - +65°C -30°C - +65°C -30°C - +65°C -30°C - +65°C
E-APPROVED ECE R112, R7 ECE R112, R7 ECE R112, R7 ECE R112, R7 ECE R112, R7
REF 30 50 50 50 50
EMC-CERTIFICATE ECE R10 ECE R10 ECE R10 ECE R10 ECE R10
