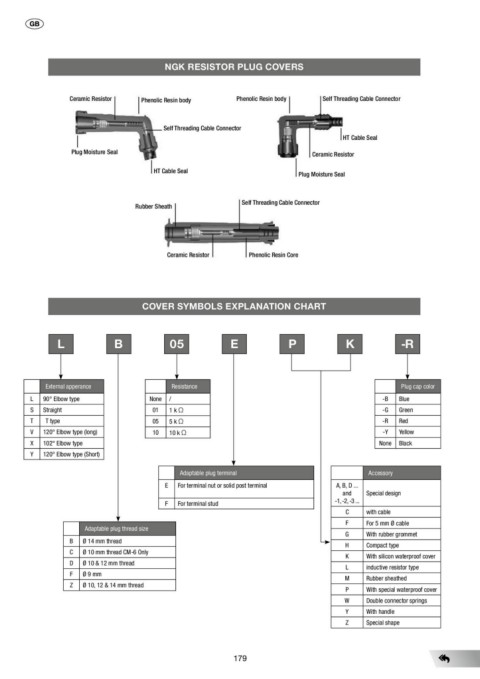

NGK RESISTOR PLUG COVERS

Ceramic Resistor Phenolic Resin body Phenolic Resin body Self Threading Cable Connector

Plug Moisture Seal Self Threading Cable Connector HT Cable Seal
HT Cable Seal Ceramic Resistor
Plug Moisture Seal

Rubber Sheath Self Threading Cable Connector

Ceramic Resistor Phenolic Resin Core

COVER SYMBOLS EXPLANATION CHART

L B 05 E P K -R

External apperance Resistance Plug cap color
None /
L 90° Elbow type 01 1 k Ω -B Blue
S Straight 05 5 k Ω -G Green
T T type 10 10 k Ω -R Red
V 120° Elbow type (long) -Y Yellow
X 102° Elbow type Adaptable plug terminal None Black
Y 120° Elbow type (Short) E For terminal nut or solid post terminal

F For terminal stud Accessory

Adaptable plug thread size A, B, D ... Special design
and
B Ø 14 mm thread with cable
C Ø 10 mm thread CM-6 Only -1, -2, -3 ... For 5 mm Ø cable
D Ø 10 & 12 mm thread C With rubber grommet
F Ø 9 mm F Compact type
Z Ø 10, 12 & 14 mm thread With silicon waterproof cover
G inductive resistor type
H Rubber sheathed
K With special waterproof cover
L Double connector springs
M With handle
P Special shape
W
Y
Z

179
