P. 91

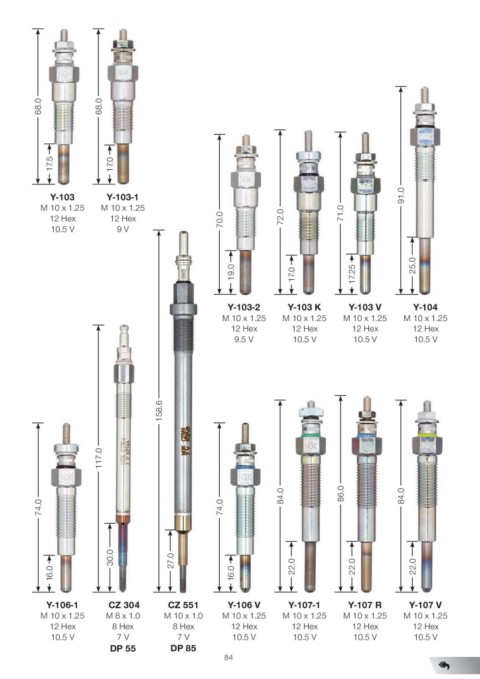

Y-10368.0 Y-103-1
M 10 x 1.2517.5M 10 x 1.25
12 Hex 68.012 Hex
10.5 V 17.09V
70.0
19.0
72.0
17.0
71.0
17.25
91.0
25.0
Y-103-2 Y-103 K Y-103 V Y-104
M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25
12 Hex 12 Hex 12 Hex 12 Hex
9.5 V 10.5 V 10.5 V 10.5 V
158.6
117.0
74.0 30.0 27.0 74.0 84.0 86.0 84.0
16.0 16.0 22.0 22.0 22.0
Y-106-1 CZ 304 CZ 551 Y-106 V Y-107-1 Y-107 R Y-107 V
M 10 x 1.25 M 8 x 1.0 M 10 x 1.0 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25
12 Hex 8 Hex 8 Hex 12 Hex 12 Hex 12 Hex 12 Hex
10.5 V 7V 7V 10.5 V 10.5 V 10.5 V 10.5 V
DP 55 DP 85 84
