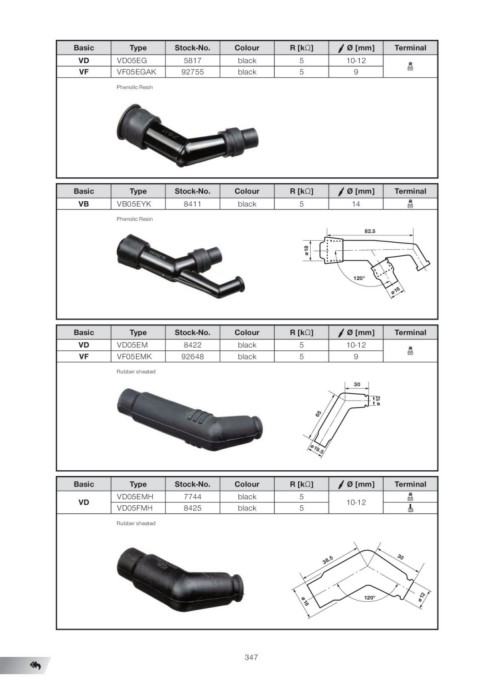

Basic Type Stock-No. Colour R [kΩ] Ø [mm] Terminal
VD05EG
VD VF05EGAK 5817 black 5 10-12
VF 92755 black 5 9
Phenolic Resin

Basic Type Stock-No. Colour R [kΩ] Ø [mm] Terminal
VB VB05EYK 8411 black 5 14

Phenolic Resin

82.5

ø 18 120°
65
ø 16
ø 12
Basic Type Stock-No. Colour R [kΩ] Ø [mm] Terminal
VD05EM
VD VF05EMK 8422 black 5 10-12
VF 92648 black 5 9
Rubber sheated

30

ø 19.5

Basic Type Stock-No. Colour R [kΩ] Ø [mm] Terminal
VD VD05EMH 10-12
VD05FMH 7744 black 5
8425 black 5
Rubber sheated

38.5 30

ø 16 120° ø 12

347
