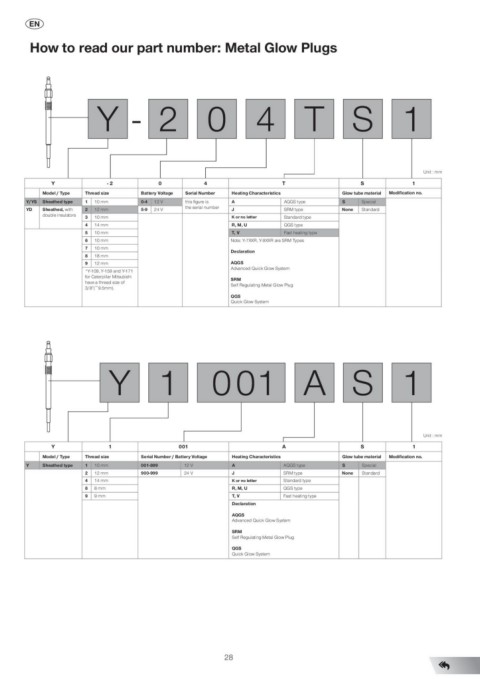

How to read our part number: Metal Glow Plugs
Y-2 0 4 T S 1
Y -2 0 4 T S Unit : mm
1
Model / Type Thread size Battery Voltage Serial Number Heating Characteristics Glow tube material Modification no.
0-4 12 V
Y/YS Sheathed type 1 10 mm 5-9 24 V this figure is A AQGS type S Special
YD Sheathed, with 2 12 mm the serial number None Standard
double insulators 3 10 mm J SRM type
4 14 mm K or no letter Standard type
5 10 mm R, M, U QGS type
6 10 mm T, V Fast heating type
7 10 mm
8 18 mm Note: Y-7XXR, Y-9XXR are SRM Types
9 12 mm
*Y-109, Y-159 and Y-171 Declaration
for Caterpillar Mitsubishi
have a thread size of AQGS
3/8”(~9.5mm). Advanced Quick Glow System
SRM
Self Regulating Metal Glow Plug
QGS
Quick Glow System
Y 1 001 A S 1
Y1 001 A S Unit : mm
1
Model / Type Thread size Serial Number / Battery Voltage Heating Characteristics Glow tube material Modification no.
Y Sheathed type 1 10 mm 001-899 12 V A AQGS type S Special
900-999 24 V J SRM type None Standard
2 12 mm K or no letter Standard type
R, M, U QGS type
4 14 mm T, V Fast heating type
Declaration
8 8 mm
9 9 mm
AQGS
Advanced Quick Glow System
SRM
Self Regulating Metal Glow Plug
QGS
Quick Glow System
