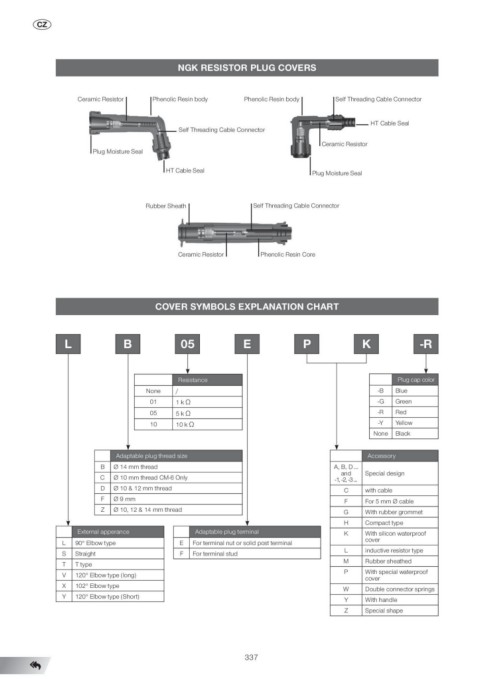

NGK RESISTOR PLUG COVERS

Ceramic Resistor Phenolic Resin body Phenolic Resin body Self Threading Cable Connector

Plug Moisture Seal Self Threading Cable Connector HT Cable Seal
HT Cable Seal Ceramic Resistor

Plug Moisture Seal

Rubber Sheath Self Threading Cable Connector

Ceramic Resistor Phenolic Resin Core

COVER SYMBOLS EXPLANATION CHART

L B 05 E P K -R

None Resistance -B Plug cap color
01 / -G Blue
05 1kΩ -R Green
10 5kΩ -Y Red
10 k Ω None Yellow
Black

Adaptable plug thread size A, B, D ... Accessory
B Ø 14 mm thread and
C Ø 10 mm thread CM-6 Only Special design
D Ø 10 & 12 mm thread -1, -2, -3 ...
F Ø 9 mm C with cable
Z Ø 10, 12 & 14 mm thread F For 5 mm Ø cable
G With rubber grommet
External apperance Adaptable plug terminal H Compact type
L 90° Elbow type E For terminal nut or solid post terminal K With silicon waterproof
S Straight F For terminal stud cover
T T type L inductive resistor type
V 120° Elbow type (long) M Rubber sheathed
X 102° Elbow type P With special waterproof
Y 120° Elbow type (Short) cover
W Double connector springs
Y With handle
Z Special shape
