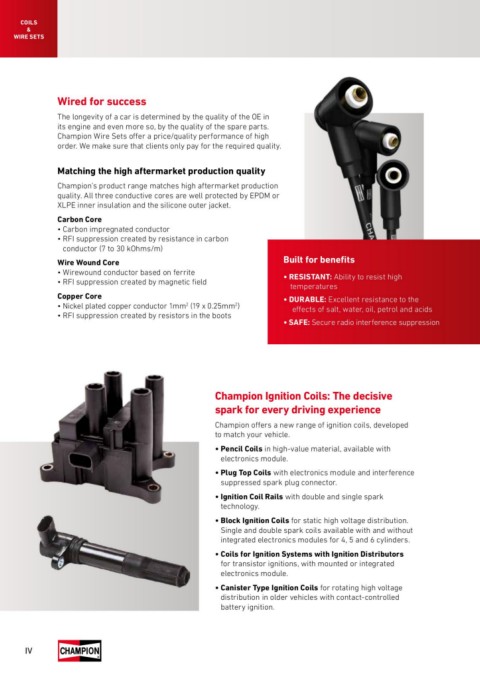

COILS
&

WIRE SETS

Wired for success

The longevity of a car is determined by the quality of the OE in
its engine and even more so, by the quality of the spare parts.
Champion Wire Sets offer a price/quality performance of high
order. We make sure that clients only pay for the required quality.

Matching the high aftermarket production quality

Champion’s product range matches high aftermarket production
quality. All three conductive cores are well protected by EPDM or
XLPE inner insulation and the silicone outer jacket.

Carbon Core Built for benefits
• Carbon impregnated conductor
• R FI suppression created by resistance in carbon • RESISTANT: Ability to resist high
temperatures
conductor (7 to 30 kOhms/m)
• DURABLE: Excellent resistance to the
Wire Wound Core effects of salt, water, oil, petrol and acids
• Wirewound conductor based on ferrite
• RFI suppression created by magnetic field • SAFE: Secure radio interference suppression

Copper Core
• Nickel plated copper conductor 1mm2 (19 x 0.25mm2)
• RFI suppression created by resistors in the boots

Champion Ignition Coils: The decisive
spark for every driving experience

Champion offers a new range of ignition coils, developed
to match your vehicle.

• Pencil Coils in high-value material, available with
electronics module.

• Plug Top Coils with electronics module and interference
suppressed spark plug connector.

• I gnition Coil Rails with double and single spark
technology.

• B lock Ignition Coils for static high voltage distribution.
Single and double spark coils available with and without
integrated electronics modules for 4, 5 and 6 cylinders.

• C oils for Ignition Systems with Ignition Distributors
for transistor ignitions, with mounted or integrated
electronics module.

• C anister Type Ignition Coils for rotating high voltage
distribution in older vehicles with contact-controlled
battery ignition.
