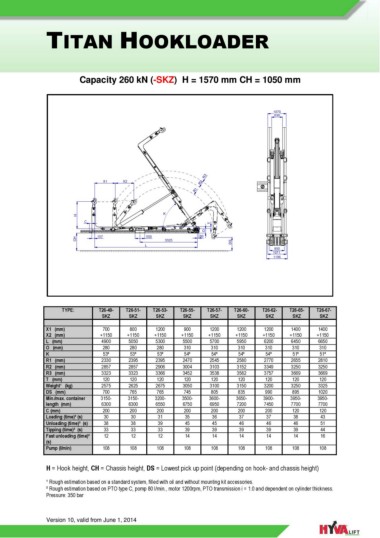

Page 3 - 20-26T

TITAN HOOKLOADER

Capacity 260 kN (-SKZ) H = 1570 mm CH = 1050 mm

TYPE: T26-49- T26-51- T26-53- T26-55- T26-57- T26-60- T26-62- T26-65- T26-67-
SKZ SKZ SKZ SKZ SKZ SKZ SKZ SKZ SKZ

X1 (mm) 700 800 1200 900 1200 1200 1200 1400 1400
X2 (mm) +1150 +1150 +1150 +1150 +1150 +1150 +1150 +1150 +1150
L (mm) 4900 5050 5300 5500 5700 5950 6200 6450 6650
O (mm) 280 280 280 310 310 310 310 310 310
K
R1 (mm) 53º 53º 53º 54º 54º 54º 54º 51º 51º
R2 (mm) 2330 2395 2395 2470 2545 2580 2770 2655 2810
R3 (mm) 2857 2857 2906 3004 3103 3152 3349 3250 3250
T (mm) 3323 3323 3366 3452 3538 3582 3757 3669 3669
Weight¹ (kg) 120 120 120 120 120 120 120 120 120
DS (mm) 2575 2625 2675 3050 3100 3150 3200 3250 3325
Min./max. container 700 765 765 745 805 835 990 895 1020
length (mm) 3150- 3150- 3200- 3500- 3600- 3650- 3900- 3950- 3950-
C (mm) 6300 6300 6550 6750 6950 7200 7450 7700 7700
Loading (time)² (s) 200 200 200 200 200 200 200 120 120
Unloading (time)² (s) 30 30 31 35 36 37 37 38 43
Tipping (time)² (s) 38 38 39 45 45 46 46 46 51
Fast unloading (time)² 33 33 33 39 39 39 39 39 44
(s) 12 12 12 14 14 14 14 14 16
Pump (l/min)
108 108 108 108 108 108 108 108 108

H = Hook height, CH = Chassis height, DS = Lowest pick up point (depending on hook- and chassis height)

¹ Rough estimation based on a standard system, filled with oil and without mounting kit accessories.
² Rough estimation based on PTO type C, pomp 80 l/min., motor 1200rpm, PTO transmission i = 1.0 and dependent on cylinder thickness.
Pressure: 350 bar

Version 10, valid from June 1, 2014
