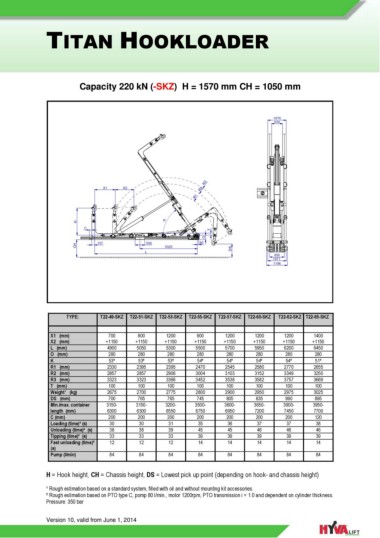

Page 2 - 20-26T

TITAN HOOKLOADER

Capacity 220 kN (-SKZ) H = 1570 mm CH = 1050 mm

TYPE: T22-49-SKZ T22-51-SKZ T22-53-SKZ T22-55-SKZ T22-57-SKZ T22-60-SKZ T22-62-SKZ T22-65-SKZ

X1 (mm) 700 800 1200 900 1200 1200 1200 1400
X2 (mm) +1150 +1150 +1150 +1150 +1150 +1150 +1150 +1150
L (mm) 4900 5050 5300 5500 5700 5950 6200 6450
O (mm) 280 280 280 280 280 280 280 280
K
R1 (mm) 53º 53º 53º 54º 54º 54º 54º 51º
R2 (mm) 2330 2395 2395 2470 2545 2580 2770 2655
R3 (mm) 2857 2857 2906 3004 3103 3152 3349 3250
T (mm) 3323 3323 3366 3452 3538 3582 3757 3669
Weight¹ (kg) 100 100 100 100 100 100 100 100
DS (mm) 2675 2700 2775 2800 2900 2950 2975 3025
Min./max. container 700 765 765 745 805 835 990 895
length (mm) 3150- 3150- 3200- 3500- 3600- 3650- 3900- 3950-
C (mm) 6300 6300 6550 6750 6950 7200 7450 7700
Loading (time)² (s) 200 200 200 200 200 200 200 120
Unloading (time)² (s) 30 30 31 35 36 37 37 38
Tipping (time)² (s) 38 38 39 45 45 46 46 46
Fast unloading (time)² 33 33 33 39 39 39 39 39
(s) 12 12 12 14 14 14 14 14
Pump (l/min)
84 84 84 84 84 84 84 84

H = Hook height, CH = Chassis height, DS = Lowest pick up point (depending on hook- and chassis height)

¹ Rough estimation based on a standard system, filled with oil and without mounting kit accessories.
² Rough estimation based on PTO type C, pomp 80 l/min., motor 1200rpm, PTO transmission i = 1.0 and dependent on cylinder thickness.
Pressure: 350 bar

Version 10, valid from June 1, 2014
