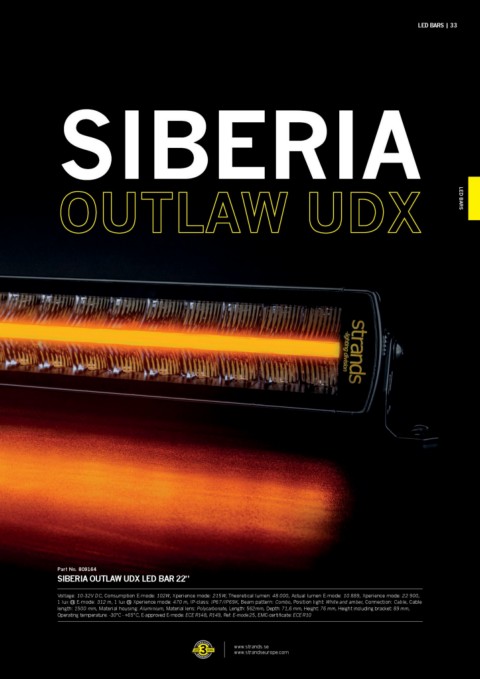

LED BARS | 33 LED BARS
SIBERIA
OUTLAW UDX
Part No. 809164
SIBERIA OUTLAW UDX LED BAR 22”
Voltage: 10-32V DC, Consumption E-mode: 102W, Xperience mode: 215W, Theoretical lumen: 48 000, Actual lumen E-mode: 10 889, Xperience mode: 22 900,
1 lux @ E-mode: 312 m, 1 lux @ Xperience mode: 470 m, IP-class: IP67/IP69K, Beam pattern: Combo, Position light: White and amber, Connection: Cable, Cable
length: 1500 mm, Material housing: Aluminium, Material lens: Polycarbonate, Length: 562mm, Depth: 71,6 mm, Height: 76 mm, Height including bracket: 89 mm,
Operating temperature: -30°C - +65°C, E-approved E-mode: ECE R148, R149, Ref: E-mode 25, EMC-certificate: ECE R10
