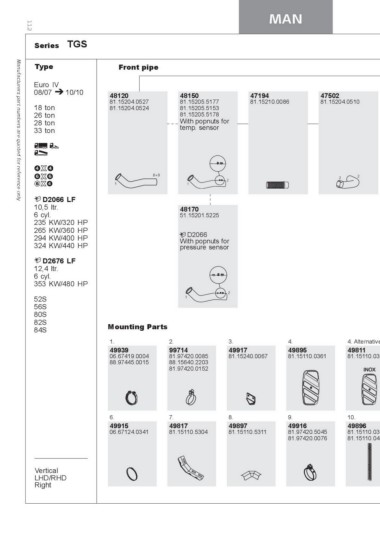

Page 210 - pakoputkistot_kuorma-autoille_euroIV-V

112 MAN

Manufacturers part numbers are quoted for reference only Series TGS Front pipe 48150 47194 47502
81.15205.5177 81.15210.0086 81.15204.0510
Type 48120 81.15205.5153
Euro IV 81.15204.0527 81.15205.5178
08/07 10/10 81.15204.0524 With popnuts for
18 ton temp. sensor
26 ton
28 ton
33 ton

2+3 2
1 2

1 2

D2066 LF 48170
10,5 ltr. 51.15201.5225
6 cyl.
235 KW/320 HP D2066
265 KW/360 HP With popnuts for
294 KW/400 HP pressure sensor
324 KW/440 HP
2
D2676 LF 1
12,4 ltr.
6 cyl. Mounting Parts
353 KW/480 HP
52S
56S
80S
82S
84S

1. 2. 3. 4. 4. Alternative
49917 49895 49811
49939 99714 81.15240.0067 81.15110.0361 81.15110.03
06.67419.0004 81.97420.0085
88.97445.0015 88.15640.2203 INOX
81.97420.0152

6. 7. 8. 9. 10.
49915 49817 49897
06.67124.0341 81.15110.5304 81.15110.5311 49916 49896
81.97420.5045 81.15110.03
81.97420.0076 81.15110.04

Vertical
LHD/RHD
Right
