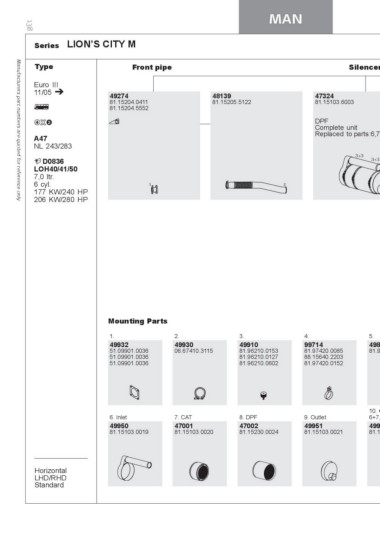

P. 262

138                                                  MAN

                                                               Series LION’S CITY M

Manufacturers part numbers are quoted for reference only  Type                      Front pipe  48139                                                    Silencer
                                                          Euro III                              81.15205.5122
                                                          11/05            49274                                                            47324
                                                                           81.15204.0411                                                      81.15103.6003
                                                                           81.15204.5552                                                    DPF
                                                                                                                                            Complete unit
                                                          A47                             1                                                 Replaced to parts:6,7
                                                          NL 243/283
                                                                                                                                                                                 3+3
                                                             D0836                                                                                                                          3+3
                                                          LOH40/41/50
                                                          7,0 ltr.                                                            2
                                                          6 cyl.
                                                          177 KW/240 HP
                                                          206 KW/280 HP

                                                                           Mounting Parts

                                                                           1.                   2.             3.             4.             5.
                                                                                                49930                                        498
                                                                           49932                06.67410.3115  49910          99714          81.9
                                                                           51.09901.0036                       81.96210.0153  81.97420.0085
                                                                           51.09901.0036                       81.96210.0127  88.15640.2203
                                                                           51.09901.0036                       81.96210.0602  81.97420.0152

                                                                           6. Inlet             7. CAT         8. DPF         9. Outlet      10. G
                                                                           49950                47001          47002          49951          6+7,
                                                                           81.15103.0019        81.15103.0020  81.15230.0024  81.15103.0021
                                                                                                                                             499
                                                                                                                                             81.1

                                                               Horizontal
                                                               LHD/RHD
                                                               Standard
