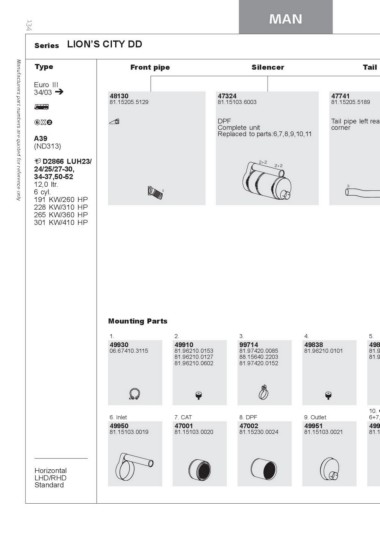

P. 254
134 MAN
Series LION’S CITY DD
Manufacturers part numbers are quoted for reference only Type Front pipe Silencer Tail
Euro III 48130
34/03 47324 47741
81.15205.5129 81.15103.6003 81.15205.5189
DPF Tail pipe left rea
Complete unit corner
Replaced to parts:6,7,8,9,10,11
A39
(ND313) 2+2
2+2
D2866 LUH23/
24/25/27-30, 3
34-37,50-52
12,0 ltr. 1
6 cyl.
191 KW/260 HP
228 KW/310 HP
265 KW/360 HP
301 KW/410 HP
Mounting Parts
1. 2. 3. 4. 5.
49930 49838
06.67410.3115 49910 99714 81.96210.0101 498
81.96210.0153 81.97420.0085 81.9
81.96210.0127 88.15640.2203 81.9
81.96210.0602 81.97420.0152
6. Inlet 7. CAT 8. DPF 9. Outlet 10. G
49950 47001 47002 49951 6+7,
81.15103.0019 81.15103.0020 81.15230.0024 81.15103.0021
499
81.1
Horizontal
LHD/RHD
Standard
