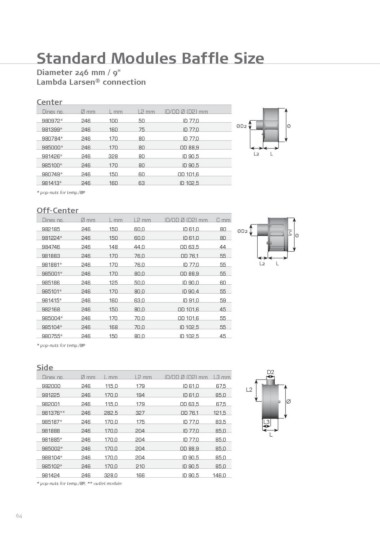

Standard Modules Baffle Size

Diameter 246 mm / 9"
Lambda Larsen® connection

Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm

980972* 246 100 50 ID 77,0 Ø
981399* 246 160 75 ID 77,0 ØD2
980784* 246 170 80 ID 77,0 L2 L
985000* 246 170 80 OD 88,9
981426* 246 328 80 ID 90,5
985100* 246 170 80 ID 90,5
980749* 246 150 60 OD 101,6
981413* 246 160 63 ID 102,5

* pop-nuts for temp./BP

Off-Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm C mm

982185 246 150 60,0 ID 61,0 80 ØD2 CØ
981224* 246 150 60,0 ID 61,0 80

984746 246 148 44,0 OD 63,5 44

981883 246 170 76,0 OD 76,1 55

981881* 246 170 76,0 ID 77,0 55 L2 L

985001* 246 170 80,0 OD 88,9 55

985186 246 125 50,0 ID 90,0 60

985101* 246 170 80,0 ID 90,4 55

981415* 246 160 63,0 ID 91,0 59

982168 246 150 80,0 OD 101,6 45

985004* 246 170 70,0 OD 101,6 55

985104* 246 168 70,0 ID 102,5 55

980755* 246 150 80,0 ID 102,5 45

* pop-nuts for temp./BP

Side D2
L2
Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm L 3 mm
Ø
982000 246 115,0 179 ID 61,0 67,5
L3
981225 246 170,0 194 ID 61,0 85,0 L

982001 246 115,0 179 OD 63,5 67,5

981376** 246 282,5 327 OD 76,1 121,5

985187* 246 170,0 175 ID 77,0 83,5

981888 246 170,0 204 ID 77,0 85,0

981885* 246 170,0 204 ID 77,0 85,0

985002* 246 170,0 204 OD 88,9 85,0

988104* 246 170,0 204 ID 90,5 85,0

985102* 246 170,0 210 ID 90,5 85,0

981424 246 328,0 166 ID 90,5 146,0

* pop-nuts for temp./BP, ** outlet module

64
