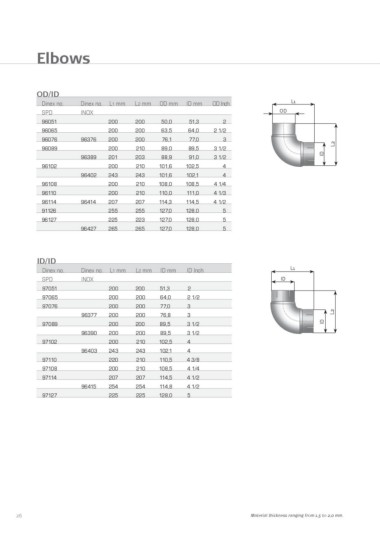

Elbows

OD/ID

Dinex no. Dinex no. L1 mm L2 mm OD mm ID mm OD Inch L1
OD
SPD INOX
L1
96051 200 200 50,0 51,3 2 ID

96065 200 200 63,5 64,0 2 1/2

96076 96376 200 200 76,1 77,0 3 ID
L2
96089 200 210 89,0 89,5 3 1/2

96389 201 203 88,9 91,0 3 1/2

96102 200 210 101,6 102,5 4

96402 243 243 101,6 102,1 4

96108 200 210 108,0 108,5 4 1/4

96110 200 210 110,0 111,0 4 1/3

96114 96414 207 207 114,3 114,5 4 1/2

91126 255 255 127,0 128,0 5

96127 225 223 127,0 128,0 5

96427 265 265 127,0 128,0 5

ID/ID

Dinex no. Dinex no. L1 mm L2 mm ID mm ID Inch

SPD INOX

97051 200 200 51,3 2

97065 200 200 64,0 2 1/2

97076 200 200 77,0 3 ID
L2
96377 200 200 76,8 3

97089 200 200 89,5 3 1/2

96390 200 200 89,5 3 1/2

97102 200 210 102,5 4

96403 243 243 102,1 4

97110 220 210 110,5 4 3/8

97108 200 210 108,5 4 1/4

97114 207 207 114,5 4 1/2

96415 254 254 114,8 4 1/2

97127 225 225 128,0 5

26 Material thickness ranging from 1,5 to 2,0 mm.
