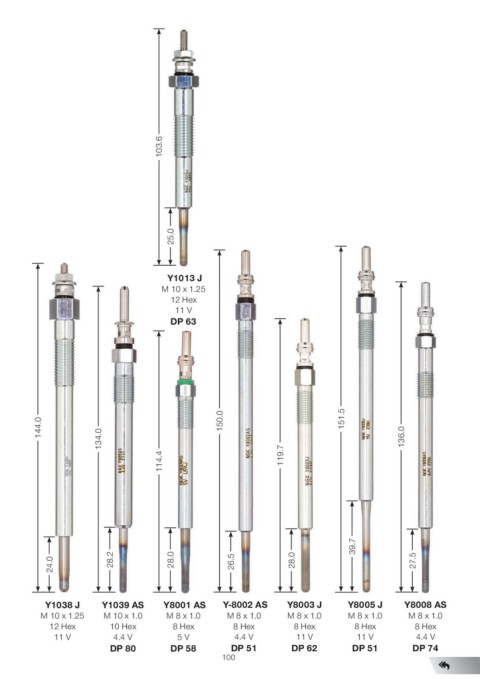

Page 107 - ngk-pienkonetulpat
P. 107
103.6
25.0
Y1013 J
M 10 x 1.25
12 Hex
11 V
DP 63
144.0
134.0
114.4
150.0
119.7
151.5
136.0
24.0
28.2
28.0
26.5
28.0
39.7
27.5
Y1038 J Y1039 AS Y8001 AS Y-8002 AS Y8003 J Y8005 J Y8008 AS
M 10 x 1.25 M 10 x 1.0 M 8 x 1.0 M 8 x 1.0 M 8 x 1.0 M 8 x 1.0 M 8 x 1.0
12 Hex 10 Hex 8 Hex 8 Hex 8 Hex 8 Hex 8 Hex
11 V 4.4 V 5V 4.4 V 11 V 11 V 4.4 V
DP 80 DP 51 DP 62 DP 51 DP 74
DP 58 100
