Page 6 - PM11SP
P. 6

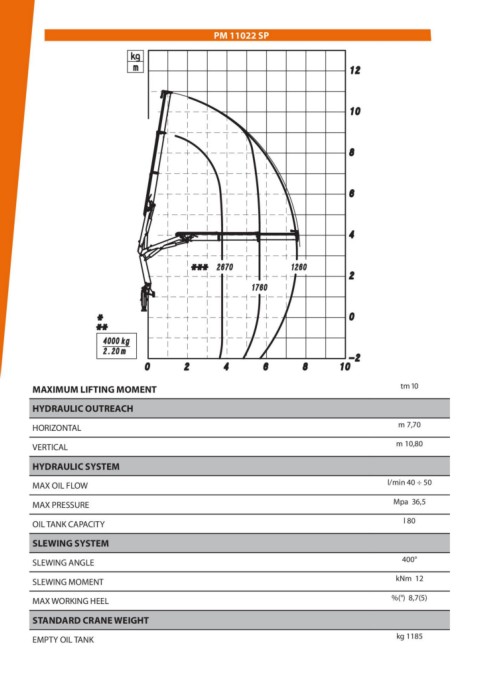

PM 11022 SP
MAXIMUM LIFTING MOMENT tm 10
HYDRAULIC OUTREACH
HORIZONTAL m 7,70
VERTICAL m 10,80
HYDRAULIC SYSTEM
MAX OIL FLOW l/min 40 ÷ 50
MAX PRESSURE Mpa 36,5
OIL TANK CAPACITY l 80
SLEWING SYSTEM
SLEWING ANGLE 400°
SLEWING MOMENT kNm 12
MAX WORKING HEEL %(°) 8,7(5)
STANDARD CRANE WEIGHT
EMPTY OIL TANK kg 1185
