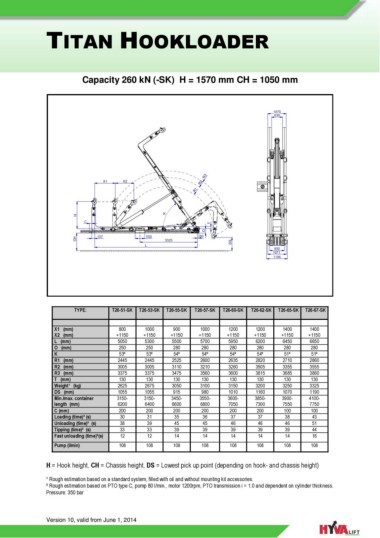

TITAN HOOKLOADER

Capacity 260 kN (-SK) H = 1570 mm CH = 1050 mm

TYPE: T26-51-SK T26-53-SK T26-55-SK T26-57-SK T26-60-SK T26-62-SK T26-65-SK T26-67-SK

X1 (mm) 800 1000 900 1000 1200 1200 1400 1400
X2 (mm) +1150 +1150 +1150 +1150 +1150 +1150 +1150 +1150
L (mm) 5050 5300 5500 5700 5950 6200 6450 6650
O (mm) 250 250 280 280 280 280 280 280
K
R1 (mm) 53º 53º 54º 54º 54º 54º 51º 51º
R2 (mm) 2445 2445 2525 2600 2635 2820 2710 2860
R3 (mm) 3005 3005 3110 3210 3260 3505 3355 3555
T (mm) 3375 3375 3475 3560 3600 3815 3685 3860
Weight¹ (kg) 130 130 130 130 130 130 130 130
DS (mm) 2625 2675 3050 3100 3150 3200 3250 3325
Min./max. container 1055 1055 915 980 1010 1160 1070 1190
length (mm) 3150- 3150- 3450- 3550- 3600- 3850- 3900- 4100-
C (mm) 6200 6400 6600 6800 7050 7300 7550 7750
Loading (time)² (s) 200 200 200 200 200 200 100 100
Unloading (time)² (s) 30 31 35 36 37 37 38 43
Tipping (time)² (s) 38 39 45 45 46 46 46 51
Fast unloading (time)²(s) 33 33 39 39 39 39 39 44
12 12 14 14 14 14 14 16
Pump (l/min)
108 108 108 108 108 108 108 108

H = Hook height, CH = Chassis height, DS = Lowest pick up point (depending on hook- and chassis height)

¹ Rough estimation based on a standard system, filled with oil and without mounting kit accessories.
² Rough estimation based on PTO type C, pomp 80 l/min., motor 1200rpm, PTO transmission i = 1.0 and dependent on cylinder thickness.
Pressure: 350 bar

Version 10, valid from June 1, 2014
