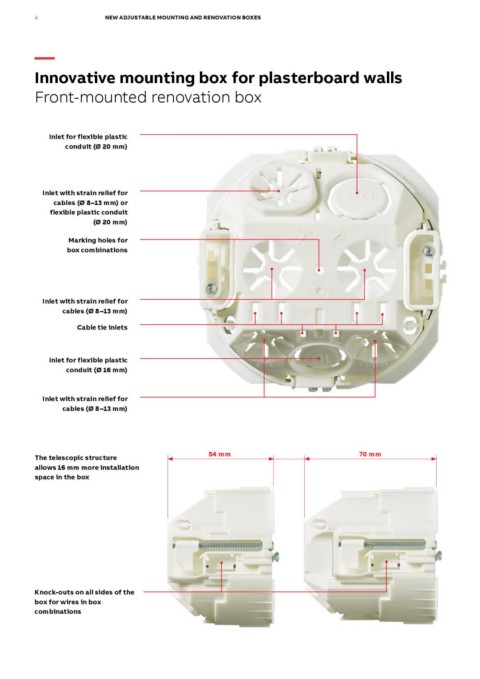

4 NEW ADJUSTABLE MOUNTING AND RENOVATION BOXES

—

Innovative mounting box for plasterboard walls
Front-mounted renovation box

Inlet for flexible plastic
conduit (Ø 20 mm)

Inlet with strain relief for
cables (Ø 8–13 mm) or

flexible plastic conduit
(Ø 20 mm)

Marking holes for
box combinations

Inlet with strain relief for 54 mm 70 mm
cables (Ø 8–13 mm)
Cable tie inlets

Inlet for flexible plastic
conduit (Ø 16 mm)

Inlet with strain relief for
cables (Ø 8–13 mm)

The telescopic structure
allows 16 mm more installation
space in the box

Knock-outs on all sides of the
box for wires in box
combinations
