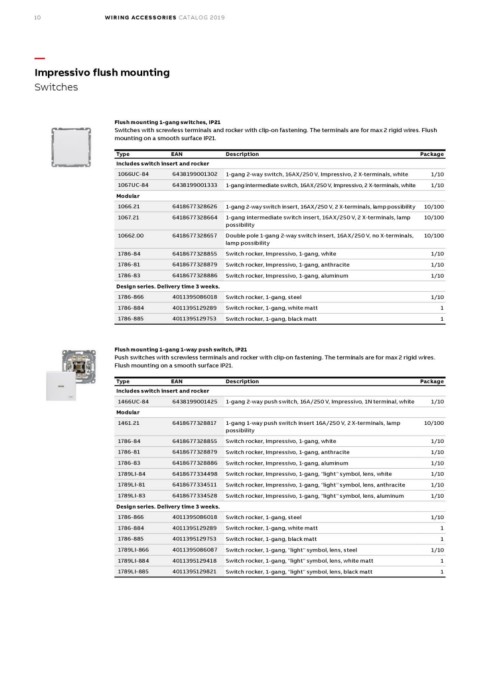

Page 10 - ABB_Wiring_Accessories_Impressivo_Jussi_catalog

10 WIRING ACCESSORIES C ATALOG 2019

—
Impressivo flush mounting
Switches

Flush mounting 1-gang switches, IP21
Switches with screwless terminals and rocker with clip-on fastening. The terminals are for max 2 rigid wires. Flush
mounting on a smooth surface IP21.

Type EAN Description Package

Includes switch insert and rocker

1066UC-84 6438199001302 1-gang 2-way switch, 16AX/250 V, Impressivo, 2 X-terminals, white 1/10

1067UC-84 6438199001333 1-gang intermediate switch, 16AX/250 V, Impressivo, 2 X-terminals, white 1/10

Modular

1066.21 6418677328626 1-gang 2-way switch insert, 16AX/250 V, 2 X-terminals, lamp possibility 10/100

1067.21 6418677328664 1-gang intermediate switch insert, 16AX/250 V, 2 X-terminals, lamp 10/100
possibility

10662.00 6418677328657 Double pole 1-gang 2-way switch insert, 16AX/250 V, no X-terminals, 10/100
lamp possibility

1786-84 6418677328855 Switch rocker, Impressivo, 1-gang, white 1/10

1786-81 6418677328879 Switch rocker, Impressivo, 1-gang, anthracite 1/10

1786-83 6418677328886 Switch rocker, Impressivo, 1-gang, aluminum 1/10

Design series. Delivery time 3 weeks.

1786-866 4011395086018 Switch rocker, 1-gang, steel 1/10

1786-884 4011395129289 Switch rocker, 1-gang, white matt 1

1786-885 4011395129753 Switch rocker, 1-gang, black matt 1

Flush mounting 1-gang 1-way push switch, IP21
Push switches with screwless terminals and rocker with clip-on fastening. The terminals are for max 2 rigid wires.
Flush mounting on a smooth surface IP21.

Type EAN Description Package

Includes switch insert and rocker

1466UC-84 6438199001425 1-gang 2-way push switch, 16A/250 V, Impressivo, 1N terminal, white 1/10

Modular

1461.21 6418677328817 1-gang 1-way push switch insert 16A/250 V, 2 X-terminals, lamp 10/100
possibility

1786-84 6418677328855 Switch rocker, Impressivo, 1-gang, white 1/10

1786-81 6418677328879 Switch rocker, Impressivo, 1-gang, anthracite 1/10

1786-83 6418677328886 Switch rocker, Impressivo, 1-gang, aluminum 1/10

1789LI-84 6418677334498 Switch rocker, Impressivo, 1-gang, "light" symbol, lens, white 1/10

1789LI-81 6418677334511 Switch rocker, Impressivo, 1-gang, "light" symbol, lens, anthracite 1/10

1789LI-83 6418677334528 Switch rocker, Impressivo, 1-gang, "light" symbol, lens, aluminum 1/10

Design series. Delivery time 3 weeks.

1786-866 4011395086018 Switch rocker, 1-gang, steel 1/10

1786-884 4011395129289 Switch rocker, 1-gang, white matt 1

1786-885 4011395129753 Switch rocker, 1-gang, black matt 1

1789LI-866 4011395086087 Switch rocker, 1-gang, "light" symbol, lens, steel 1/10

1789LI-884 4011395129418 Switch rocker, 1-gang, "light" symbol, lens, white matt 1

1789LI-885 4011395129821 Switch rocker, 1-gang, "light" symbol, lens, black matt 1
