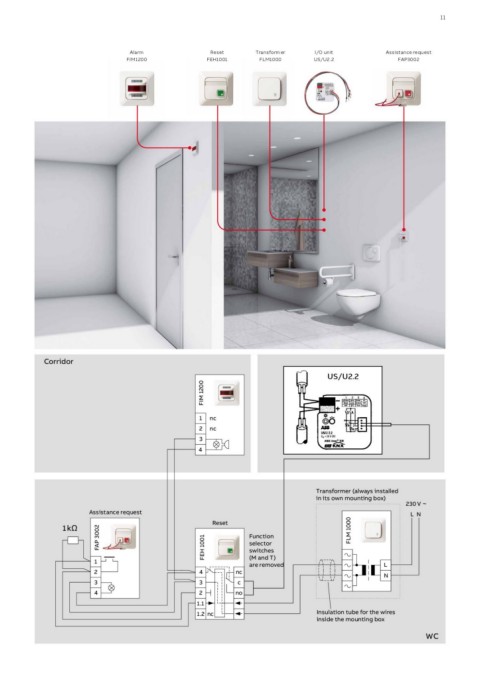

Page 11 - ABB_Signal-Easy-solutions

Alarm Reset Transformer I/O unit 11
FIM1200 FEH1001 FLM1000 US/U2.2
Assistance request
FAP3002

Corridor

FIM 1200 US/U2.2

1 nc
2 nc
3
4

Transformer (always installed 230 V ~
in its own mounting box) LN

Assistance request

1kΩ FAP 3002 Reset FLM 1000
FEH 1001
1 Function
2 4 selector L
3 3 switches N
4 2 (M and T)
1.1 are removed
1.2 nc nc
c
no

Insulation tube for the wires
inside the mounting box

WC
