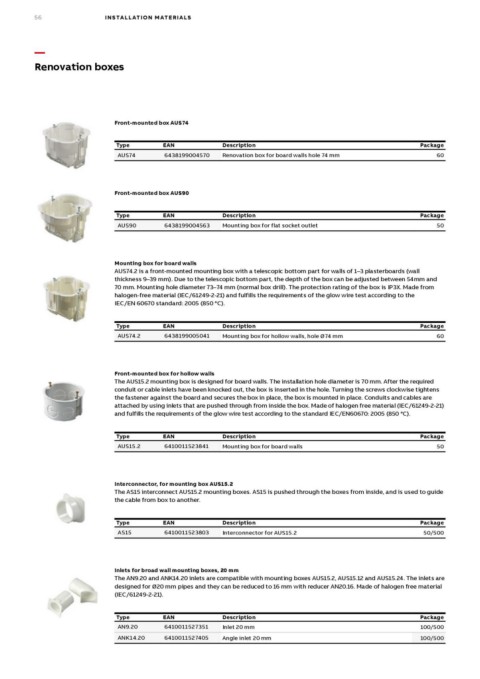

56 INSTALLATION MATERIALS

—
Renovation boxes


Front-mounted box AUS74

Type EAN Description Package
AUS74 6438199004570 Renovation box for board walls hole 74 mm 60

Front-mounted box AUS90

Type EAN Description Package
AUS90 6438199004563 Mounting box for flat socket outlet 50

Mounting box for board walls
AUS74.2 is a front-mounted mounting box with a telescopic bottom part for walls of 1–3 plasterboards (wall
thickness 9–39 mm). Due to the telescopic bottom part, the depth of the box can be adjusted between 54mm and
70 mm. Mounting hole diameter 73–74 mm (normal box drill). The protection rating of the box is IP3X. Made from
halogen-free material (IEC/61249-2-21) and fulfills the requirements of the glow wire test according to the
IEC/EN 60670 standard: 2005 (850 °C).

Type EAN Description Package
AUS74.2 6438199005041 Mounting box for hollow walls, hole Ø74 mm 60

Front-mounted box for hollow walls
The AUS15.2 mounting box is designed for board walls. The installation hole diameter is 70 mm. After the required
conduit or cable inlets have been knocked out, the box is inserted in the hole. Turning the screws clockwise tightens
the fastener against the board and secures the box in place, the box is mounted in place. Conduits and cables are
attached by using inlets that are pushed through from inside the box. Made of halogen free material (IEC/61249-2-21)
and fulfills the requirements of the glow wire test according to the standard IEC/EN60670: 2005 (850 °C).

Type EAN Description Package
AUS15.2 6410011523841 Mounting box for board walls 50

Interconnector, for mounting box AUS15.2
The AS15 interconnect AUS15.2 mounting boxes. AS15 is pushed through the boxes from inside, and is used to guide
the cable from box to another.

Type EAN Description Package
AS15 6410011523803 Interconnector for AUS15.2 50/500

Inlets for broad wall mounting boxes, 20 mm
The AN9.20 and ANK14.20 inlets are compatible with mounting boxes AUS15.2, AUS15.12 and AUS15.24. The inlets are
designed for Ø20 mm pipes and they can be reduced to 16 mm with reducer AN20.16. Made of halogen free material
(IEC/61249-2-21).

Type EAN Description Package
AN9.20 6410011527351 Inlet 20 mm 100/500
ANK14.20 6410011527405 Angle inlet 20 mm 100/500
