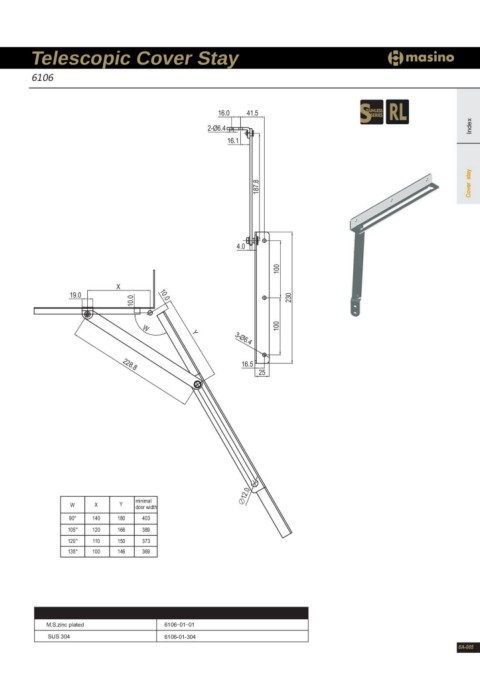

Telescopic Cover Stay Index
6106
16.0 41.5
2-Ø6.4
16.1
187.8 Cover stay
X10.0 Y 4.0 100 100
19.0 10.0 230
3-Ø6.4
W 16.5
228.8 25
WX Y minimal ∅12.0
door width
90° 140
105° 120 180 403
120° 110
135° 100 166 389
150 373
146 369
M.S.zinc plated 6106-01-01
SUS 304 6106-01-304
6A-005
