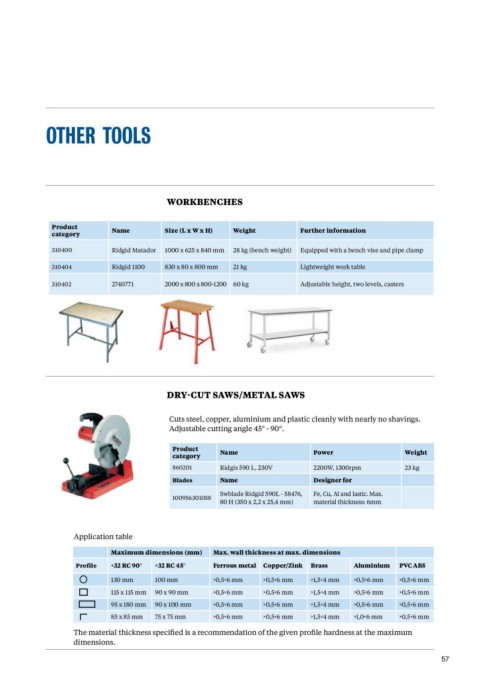

Page 57 - Teollisuuden-tuoteluettelo_englanti
P. 57
other tools
WORKBENCHES
Product Name Size (L x W x H) Weight Further information
category
310400 Ridgid Matador 1000 x 625 x 840 mm 28 kg (bench weight) Equipped with a bench vise and pipe clamp
310404 Ridgid 1100 830 x 80 x 800 mm 21 kg Lightweight work table
310402 2740771 2000 x 800 x 800-1200 60 kg Adjustable height, two levels, casters
DRY-CUT SAWS/METAL SAWS
Cuts steel, copper, aluminium and plastic cleanly with nearly no shavings.
Adjustable cutting angle 45° - 90°.
Product Name Power Weight
category Ridgis 590 L, 230V 23 kg
2200W, 1300rpm
860201 Designer for
Fe, Cu, Al and lastic. Max.
Blades Name material thickness: 6mm
100956301058 Swblade Ridgid 590L - 58476,
80 H (350 x 2,2 x 25,4 mm)
Application table
Maximum dimensions (mm) Max. wall thickness at max. dimensions
Profile <32 RC 90° <32 RC 45° Ferrous metal Copper/Zink Brass Aluminium PVC AB5
130 mm 100 mm >0,5<6 mm >0,5<6 mm >1,5<4 mm >0,5<6 mm >0,5<6 mm
>0,5<6 mm >0,5<6 mm >1,5<4 mm >0,5<6 mm >0,5<6 mm
115 x 115 mm 90 x 90 mm >0,5<6 mm >0,5<6 mm >1,5<4 mm >0,5<6 mm >0,5<6 mm
>0,5<6 mm >0,5<6 mm >1,5<4 mm >1,0<6 mm >0,5<6 mm
95 x 180 mm 90 x 100 mm
85 x 85 mm 75 x 75 mm
The material thickness specified is a recommendation of the given profile hardness at the maximum
dimensions.
